3 Pin Push Pull Low Voltage Connector 2B Series Male Plug IP50 Solder Termination
Quick details of TGG 2B series 3 pin male plug:
The 2B series 3-contacts male circular connector has a plug in-line connection. This cable mount connector has a current rating of up to 17A. This connector features a highly precise push-pull self-latching system equipped with cable collet and nut for fitting bend relief for an easy and secure connection. It has a rugged and robust design for harsh outdoor applications.
Our connectors can widely apply in these fields:
1. medical: diagnostic devices, surgical instrumentation
2. broadcast: studios and outside broadcasting, HD and SD cameras, remote camera control
3. transport: avionics, maritime, automotive, railways
4. energy: petrol&gas, nuclear, renewable energies, batteries, fuel cells
5. extreme: motorsports, diving, weatherproof applications

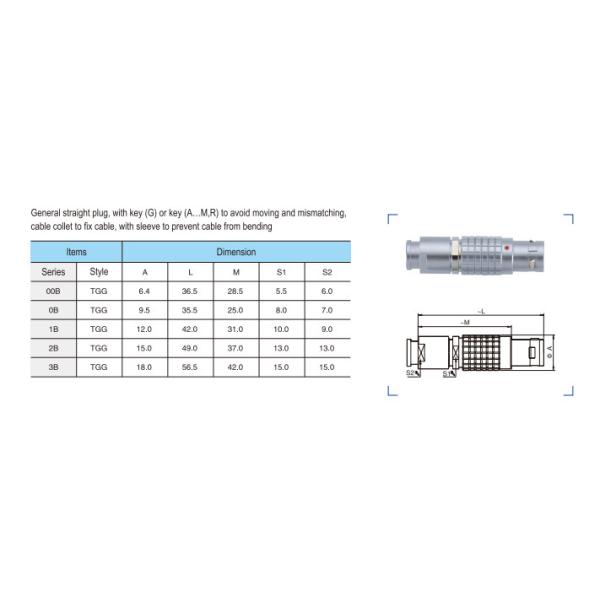

Technical Characteristics of TGG 2B series 3 pin male plug:
| Contact Gender | Male |
| Number of contacts | 3 contact |
| Termination Style | Solder |
| Current Rating | 17A |
| IP Rating | IP50 |
| Series | 2B |
| Shell Plating | Chrome |
| Shell Material | Metal |
| Temperature Range | -45°C~+125°C |
| Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt spray corrosion test | >48hrs |
| Humidity | Up to 95% at 60°C |
Features of TGG 2B series 3 pin male plug:
1. keying system («G» key standard) for connector alignment
2. 360° screening for full EMC shielding
3. Security system: push-pull self-locking
4. Multiple pins: 2-32 pin available
5. Key system: Multiple positioning types for easy mating
6. High density assembly to save space
7. IP50, waterproof
About us:
VISION--To become the world's leading supplier of industrial connectivity systems.
MISSION--High reliability connectivity system solutions for the industrial field.
VALUES--Quality first, quick response, pursuit of excellence, full participation, achievement customer.
Independent research and development--Dozens of invention and utility model patents.
Connector whole process manufacturing--Covers pin jacks, housing components, plastic core molds, injection molding, cables, testing.
Quality and efficient service--Fast quality customer service, quick response; Cooperated with many customers for 8 years.
Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
Cable assembly service: we can supply cable assembly service according to your requirements.
Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supply professional support to help you solve them.
Cable assembly solution supply: We can make cable assembly service solution to meets you need.
Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.
FAQ:
Q: What about the quality of your products?
All of our products have UL certification and are strictly tested by our QC department before shipment.
Q: How long is usually your delivery time?
Our delivery time is usually within 10 days after your payment.
Q: Some connectors are available with different cables. Which cables shall I choose?
Always choose the cable with the bigger diameter, because the bigger diameter results in less attenuation.
Q: What can you buy from us?
Push-pull connectors, cable assembly, bayonet connectors, military connectors, custom connectors.
Q: What payment methods you support?
We accept T/T, Papal, Western Union, etc.
